AP7 series PLC

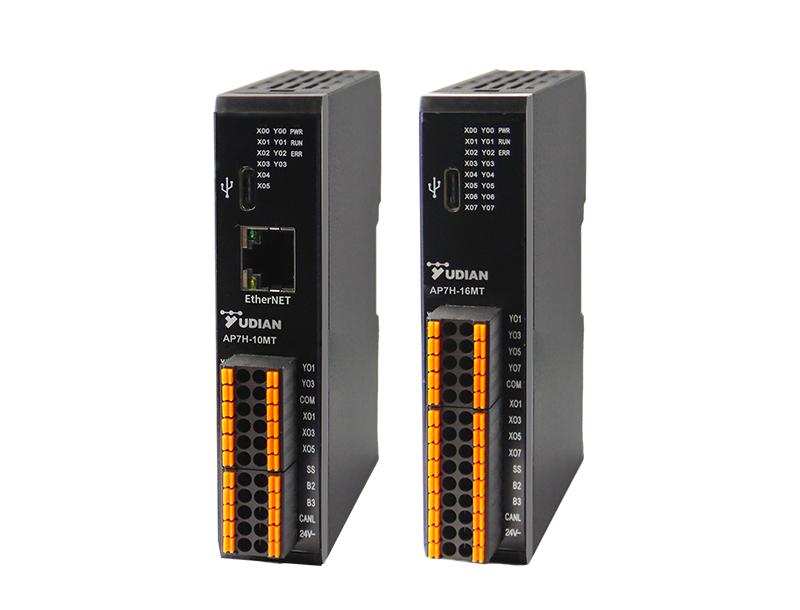

AP7H-10MT: 6DI 4DO programmable logic controller. Features include RS485 (2 channels), CAN, one Ethernet port, high-speed input supporting up to 6 channels at 100KHz (default is 4 channels, 6 channels require special request), and high-speed output supporting 3 channels at 100KHz (when used concurrently, the total maximum output frequency for the three channels is 150KHz).
AP7M-10MT: 6DI 4DO programmable logic controller. Features include RS485 (2 channels), CAN, and one Ethernet port.
AP7H-16MT: 8DI 8DO programmable logic controller. Features include RS485 (2 channels), CAN, high-speed input supporting 4 channels at 100KHz, and high-speed output supporting 3 channels at 100KHz (when used concurrently, the total maximum output frequency for the three channels is 150KHz).
AP7M-16MT: 8DI 8DO programmable logic controller. Features include RS485 (2 channels) and CAN.
YUDIAN AP7 Series PLCs feature a compact design, high reliability, and robust expandability, specifically engineered for complex industrial applications.
They support up to 5 expansion modules (120 I/O), enabling direct integration with YUDIAN temperature controllers, facilitating seamless process and logic control within a single platform. This integration simplifies system architecture and reduces overall costs.
They are equipped with dual RS-485 ports and a CAN interface, natively supporting mainstream industrial protocols like Modbus RTU and CANBus. All models feature optocoupler isolation for superior noise immunity and robustness in harsh electrical environments.
With a 256 KB program memory, retentive data registers, and support for programming in both Ladder Logic and C language, they balance user-friendliness with advanced development flexibility. AP7 Series is an ideal control solution for small to medium-sized production lines and temperature-critical applications.
The configuration software is available in Chinese only.
